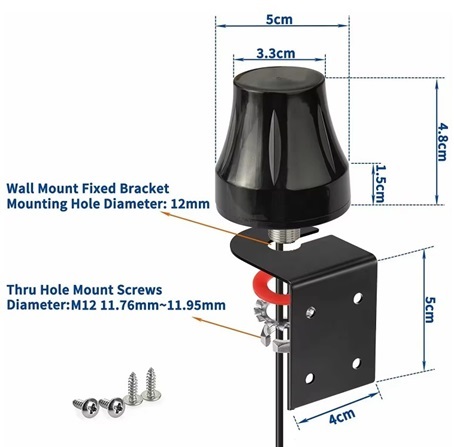

External 4G/LTE Antenna
This robust external antenna is the perfect solution for environments where reliable mobile network connectivity is a challenge. Designed for optimal performance, it can be easily mounted outside of enclosed spaces, such as chambers or industrial facilities, ensuring uninterrupted data transmission.
Get the signal out of the chamber
By extending the antenna out of signal-restricted areas, you can maintain a strong, consistent mobile network connection, thereby reducing the risk of data delay and ensuring continuous operation of your remote datalogging equipment.

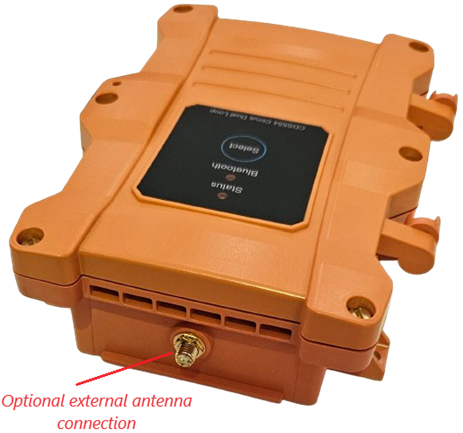

Please note: if a logger is selected with an external antenna connection instead of an internal antenna, the housing IP rating reduces from IP68 to IP65.
Technical detail
- Type: Waterproof 4G/LTE antenna
- Brand name: Cowin
- Model number: 202206201602
- Frequency range: 698-960 / 1710-2170 / 2300-2700 MHz
- Gain: 5dBi
- V.S.W.R.: ≤ 1.5
- Impedance: 50Ω
- Power: 10W
- Polarisation: vertical
- Cable: 3 meter RG58 cable
- Connector: SMA male connector
Specify the antenna option with your loggers
Order any Cirrus or Nimbus logger with the SMA external antenna connector when the installation site has poor mobile coverage.
